Description

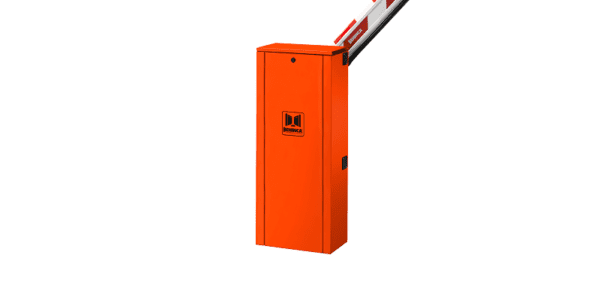

VE.650 Road barriers & car park saver
24 Vdc barrier for intensive use with integrated control unit and battery charger | Switching power supply 100÷250 Vac 50/60 Hz which reduces energy consumption and ensures a long lifespan of the actuator | Easy installation and possibility of quick connection for operation of opposed barriers, thanks to the SIS accessory board | Reduced energy use on stand-by | Option to install FTC.S photocells using concealed system so that they are perfectly integrated | Adjustable limit switches for slowing phases | Adjustable slow-downs
Foundation plate not included
TECHNICAL DATA
| Power supply | 230 Vac (50-60Hz) |
| Motor supply | 24 Vdc |
| Max absorbed current | 1.6 A |
| Power consumption in stand-by | 40 mA |
| Torque | 285 Nm |
| Opening time | 5” ÷ 7” |
| Duty cycle | intensive use |
| Protection level | IP44 |
| Built-in control unit | Yes |
| Integrated receiver | Yes |
| Encoder | No |
| Operating temperature | -20°C /+50°C |
| Lubrication | GREASE |
| Passage width | 6.5 m |
| Weight | 77.2 kg |
| N. motors per pallet | 6 |
CONTROL UNITS

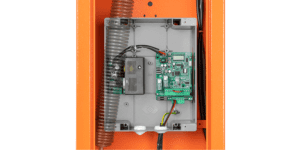

CP.LADY
APPLICATION
1 road barrier series LADY, LADY.5, VE.650
CONTROL UNIT POWER SUPPLY
100÷250 Vac – 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Open, close, step by step, pedestrian and stop inputs | Output for LADY.L accessory, LED integrated on arm | Output configurable as open barrier indicator light, second radio channel of incorporated receiver, arm light, service light, photocell test or maintenance indicator | Predesigned for the operation of opposed barriers with SIS synchronisation board (optional) | Autosetting of operation parameters | Anti-crushing safety thanks to amperometric obstacle detection | Adjustable slow-downs | Number of maneuvers | Programming access password | Maintenance warning | Integrated battery charger, compatible with battery models DA.BT2/DA.BT6

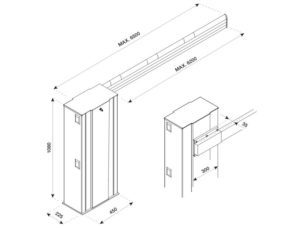

TECHNICAL DRAWING
