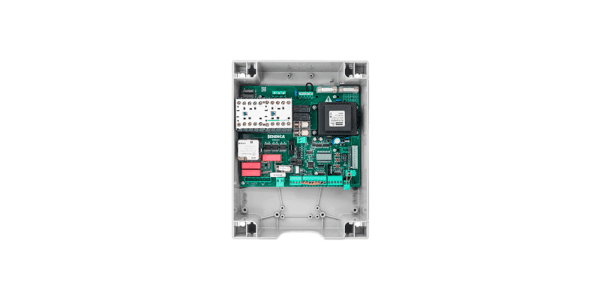

THINKY Accessories and control panels | Benincà

APPLICATION

1 actuator for sectional doors and rolling doors, folding doors with more than two sections, unbalanced shutters and industrial sliding gates

CONTROL UNIT POWER SUPPLY

230 Vac single-phase or 400 Vac three-phase

MOTORS POWER SUPPLY

230 Vac single-phase or 400 Vac three-phase

MAIN FUNCTIONS

Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with ARC and predesigned for plug-in radio receiver | Predesigned for connection to absolute encoder and quick wiring (VN “ESW” motors) | Autosetting of operating parameters with motors equipped with absolute encoder (VN “ESW” motors) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Open, close, step by step, pedestrian and stop inputs | Inputs for 4 pairs of photocells (configurable as active in opening-closing or in closing phases) and equipped with PHOTO TEST logic | Input for N.C or 8K2 sensitive edge | Input for safety sensor | Output configurable as gate open indicator, second radio channel, service light and area light | Output configurable as gate open indicator or photocell testing output | Protection against phase failure and exceeding motor current threshold | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning
