Description

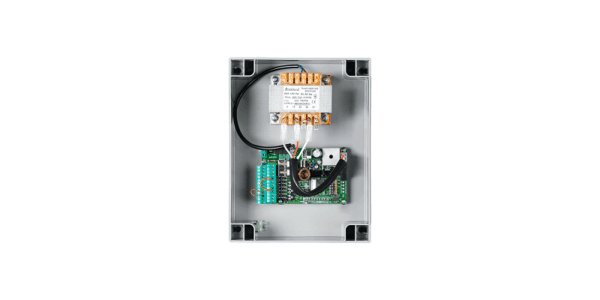

LOGICA24
APPLICATION
1 or 2 actuators for tilt up doors
CONTROL UNIT POWER SUPPLY
230 Vac – 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc
MAIN FUNCTIONS
Parameter and operation logic regulations through trimmers and dip-switches | Integrated 433.92 MHz 64-code radio receiver with ARC coding | Removable terminal boards | Automatic and semi-automatic logic | Motor limit switch inputs | Inputs for open, close, stop, step by step and photocell | N.C or 8K2 sensitive edge input | Output for service light 24 Vac/dc | Electronic torque adjustment | Anti-crushing system with amperometric detection | Fixed slow-downs | Advantouch system to manage radio transmitters memorised on integrated receiver
| Control unit power supply | 230 Vac – 50/60 Hz |
| Motor supply | 24 Vdc |
| N. memorisable codes | 64 |
| Encoder | No |
| Virtual encoder | No |
| Inverter technology | No |
| STC System | No |
| ARC Only | Yes |
| Self-Calibration | No |
| Maintenance warning | No |
| Password | No |
