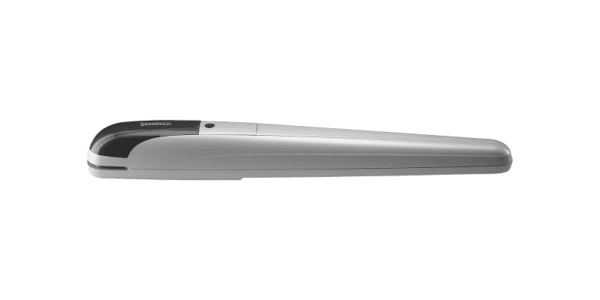

BOB5024E
24 Vdc | intensive use
Irreversible 24 Vdc electromechanical geared motor for intensive use, equipped with encoder | The encoder device ensures maximum safety and precision in the gate moving phases | Amperometric sensor obstacle detection system to prevent crushing | Optional battery powered operation | Reliable, quiet, and quick to install geared motor, thanks to its 2 adjustable mechanical stops for opening and closing | Rolled ball screws Ø 20 mm | Easy access release from above
Technical Data
| Power supply | 230 Vac (50-60Hz) |
| Motor supply | 24 Vdc |
| Max absorbed current | 6.7 A |
| Maximum thrust | 2200 N |
| Opening time | 21” |
| Standard stroke | 455 mm |
| Max stroke | 520 mm |
| Duty cycle | intensive use |
| Protection level | IP44 |
| Built-in control unit | |
| Encoder | |
| Operating temperature | -20°C /+50°C |
| Lubrication | GREASE |
| Leaf max dimension | 5.0 m |
| Weight | 10.2 kg |
| N. motors per pallet | 30 |
| Kit weight | — |
| N. kits per pallet | — |
Control Unit

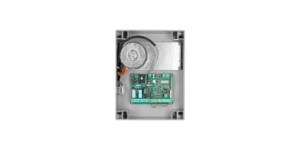

BRAINY24
APPLICATION
1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections
CONTROL UNIT POWER SUPPLY
230 Vac – 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Separate limit switch inputs for each motor | Open, close, and pedestrian inputs | Photocell inputs in opening-closing and in closing phases | Input for N.C. or 8K2 sensitive edge | Output for electric lock 12 Vdc | Output for configuration as gate open indicator, service light, second radio channel and photocell testing | Autosetting of operating parameters | Separate electronic torque adjustment for each motor | Anti-crushing safety through amperometric detection and encoder management | Separate adjustable slowdowns for each motor in opening and closing phases | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning

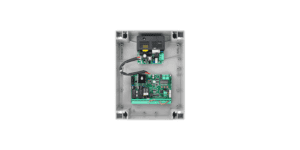

BRAINY24+
APPLICATION
1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections
CONTROL UNIT POWER SUPPLY
100÷250 Vac – 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Separate limit switch inputs for each motor | Open, close, step by step, pedestrian and stop inputs | Separate photocell inputs in opening-closing and in closing phases | Input for N.C. or 8K2 sensitive edge | Output for electric lock 12 Vdc | Output for configuration as gate open indicator or photocell testing | Output for configuration as second radio channel or service light | Autosetting of operating parameters | Separate electronic torque adjustment for each motor | Anti-crushing safety through amperometric detection and encoder management | Separate adjustable slowdowns for each motor | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning | Built-in battery charger, compatible with batteries DA.BT2/DA.BT6

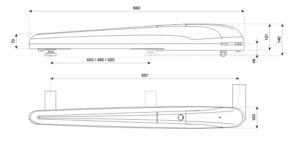

Technical Drawing
