Description

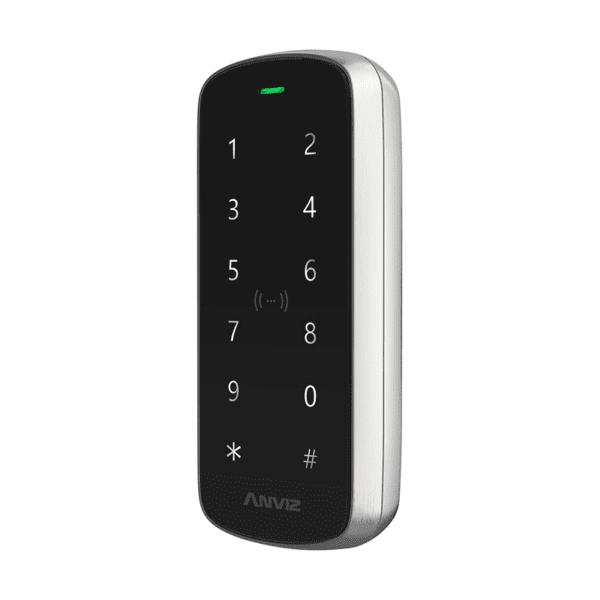

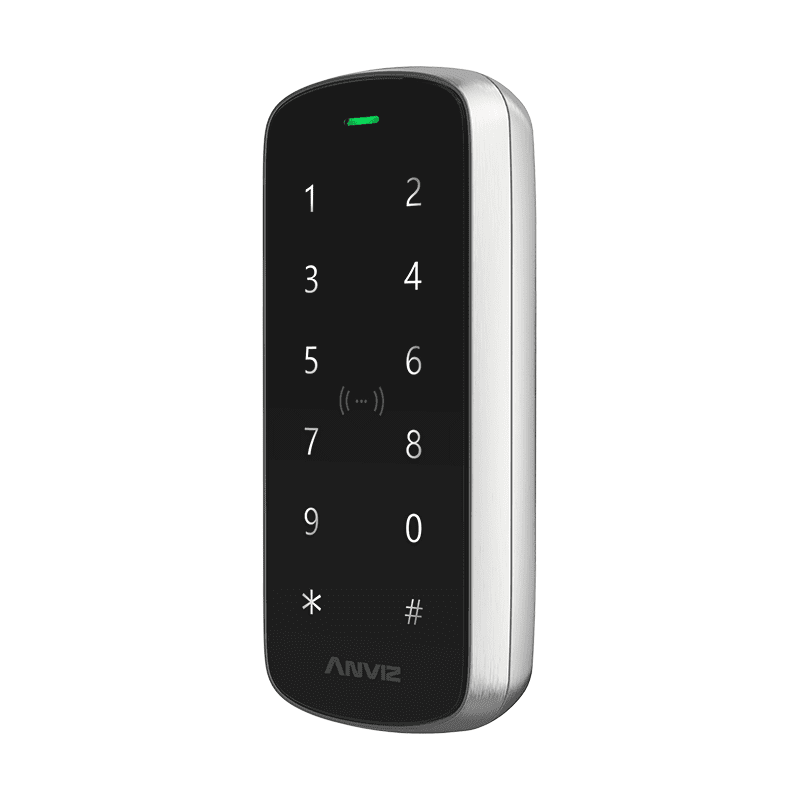

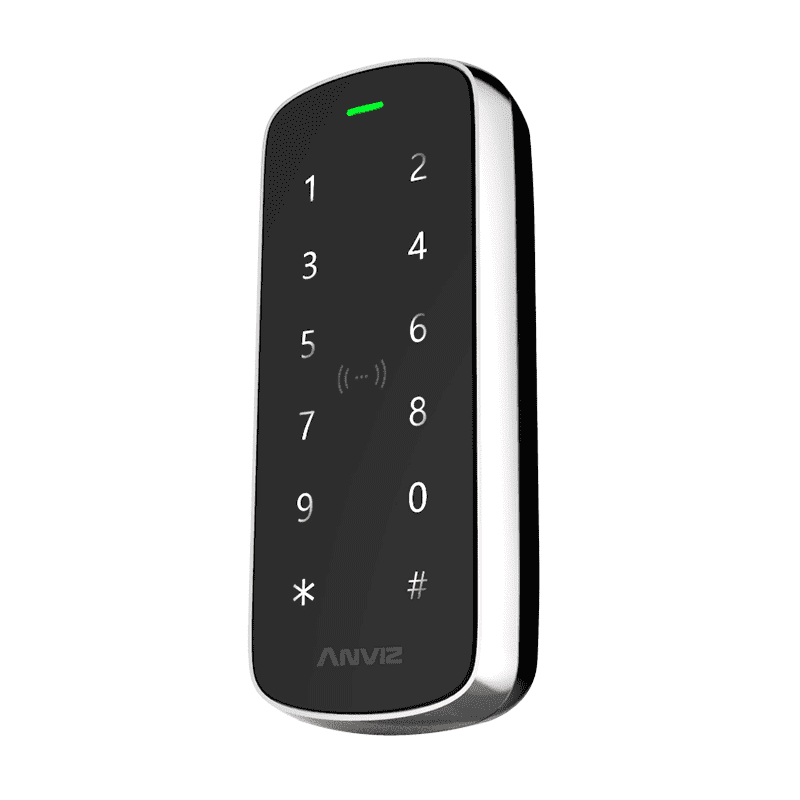

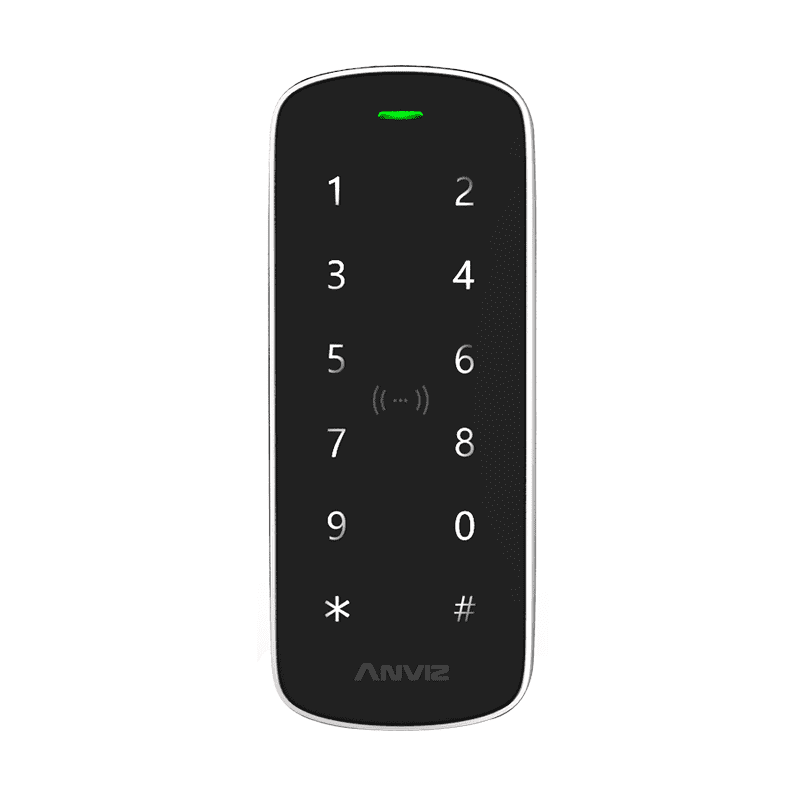

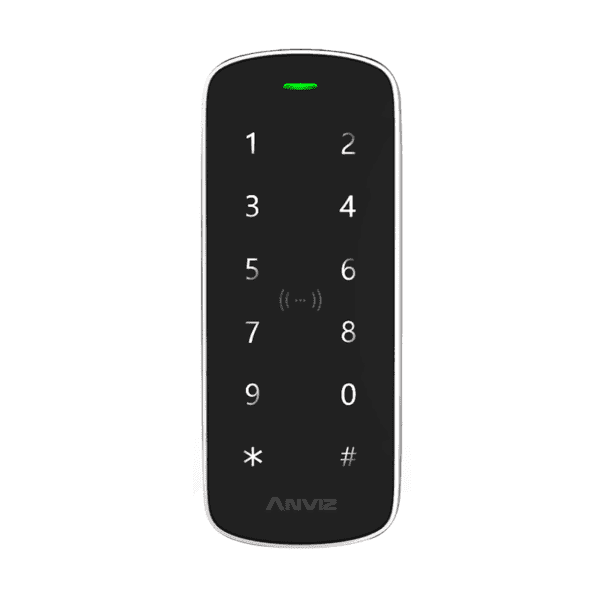

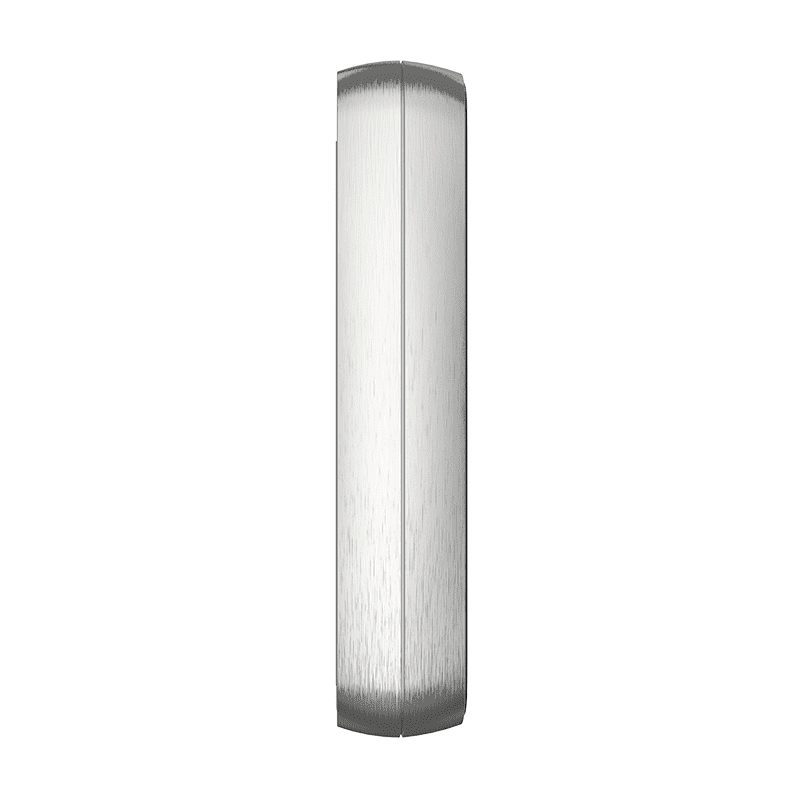

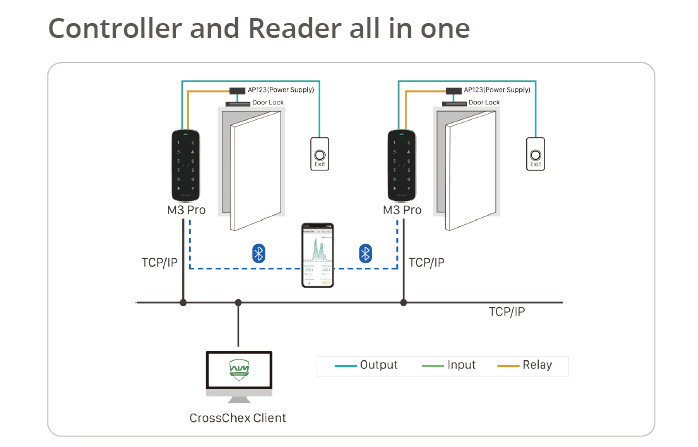

M3 Pro is a metal casing, IP65 water-proof design compact access control device, suitable for outdoor applications.It supports 13.56MHZ Mifare card and 125KHZ EM card dual frequency module. The touch backlit keypad, support TCP/IP and RS485 communication convenient for customers to use. The M3 Pro has both built-in relay for direct lock and standard Wiegand output, which can be work as standalone access controller and RFID reader.
Features
- IP65 Waterproof Design
- IK10 Vandal Proof Design
- Touch active keypad
- Bluetooth magic shake open
- Dual frequency RFID card identification
- Less than 0.5 second comparion time
- Standalone access control functions
Parameter
Capacity User 10,000 Card 10,000 Record 200,000 I/O TCP/IP Support RS485 Support MiniUSB Support Wiegand Out Support Features Identification mode Password, RFID Card, Bluetooth (optional) RFID Card Type Dual Frequency for EM and Mifare Keypad Touch Keypad LED Indicator Support Working Temperature -30℃ ~60℃ Humidity 20% to 90% Power Input DC 12V 1A IK Grade IK10 IP Grade IP65
