Description

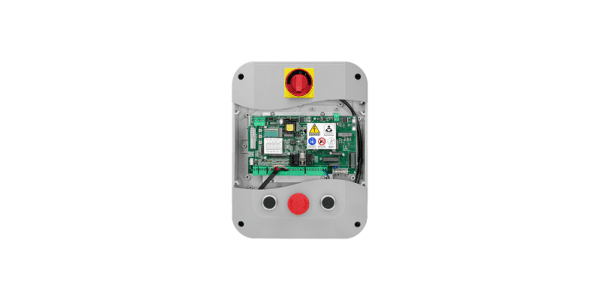

WAVE 230
APPLICATION
1 actuator of the VN series for sectional and rolling doors
CONTROL UNIT POWER SUPPLY
100÷250 Vac – 50/60 Hz
MOTORS POWER SUPPLY
230 Vac
MAIN FUNCTIONS
Integrated LCD display | ONE2.WI model 433.92 MHz radio receiver provided as standard equipment | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Predesigned for connection to absolute encoder and quick wiring (VN “ESW” motors) | Autosetting of operating parameters | Open, close, step by step, pedestrian and stop inputs | Input for N.C or 8K2 sensitive edge | Input for safety sensor | no. 2 photocell inputs configurable as active in opening-closing or in closing phases | Output configurable as gate open indicator, service light, area light | Photocell testing ouput | Second radio channel output | Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) | Anti-crushing safety thanks to amperometric obstacle detection | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters | Integrated inverter | Virtual encoder | Number of maneuvers | Programming access password | Maintenance warning
Control unit power supply | 100÷250 Vac – 50/60 Hz |
Motor supply | 230 Vac |
N. memorisable codes | 512 |
Encoder | Yes |
Virtual encoder | Yes |
Inverter technology | Yes |
STC System | Yes |
ARC Only | No |
Self-Calibration | Yes |
Maintenance warning | Yes |
Password | Yes |
