Description

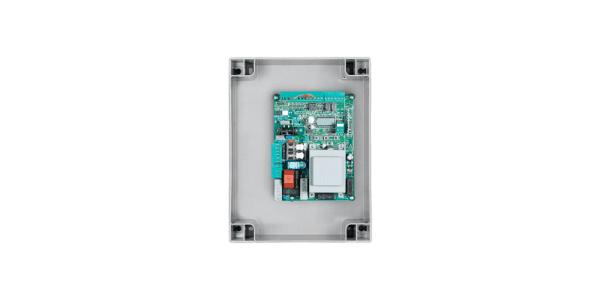

MATRIX
APPLICATION
1 actuator for sliding gate
CONTROL UNIT POWER SUPPLY
230 Vac – 50/60 Hz
MOTORS POWER SUPPLY
230 Vac
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Encoder input to detect obstacles | Motor limit switch inputs | Open, close, pedestrian, step by step and stop inputs | Input for N.C or 8K2 sensitive edge | Photocell input (PHOT O) programmable as active in opening-closing and in closing phases | Photocell input (PHOT C) programmable as active in opening-closing phases | Outputs for configuration as gate open indicator, service light, or second radio channel | Photocell testing output | Autosetting of operating parameters (with motors equipped with encoder) | Electronic torque adjustment | Adjustable slow-downs | Electronic braking guarantees a precise stop even with heavy doors | Advantouch system to configure parameters and manage radio transmitters | Programming access password | Maintenance warning
Control unit power supply | 230 Vac – 50/60 Hz |
Motor supply | 230 Vac |
N. memorisable codes | 64 |
Encoder | Yes |
Virtual encoder | No |
Inverter technology | No |
STC System | No |
ARC Only | No |
Self-Calibration | Yes |
Maintenance warning | Yes |
Password | Yes |
