Description

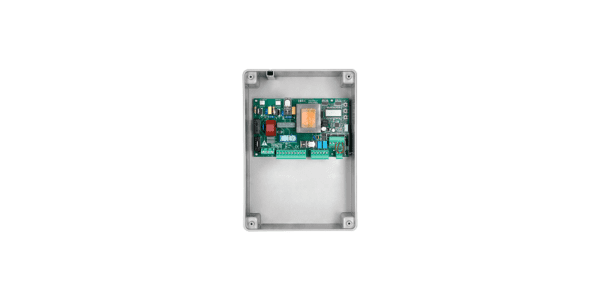

HEADY
APPLICATION
1 or 2 actuators for swing gates
CONTROL UNIT POWER SUPPLY
230 Vac – 50/60 Hz
MOTORS POWER SUPPLY
230 Vac
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, and semi-automatic logic | Step by step, pedestrian and stop inputs | Separate photocell inputs in opening-closing and in closing phases | Output for electric lock 230 Vac/service light | Output as gate open indicator, second radio channel and photocell testing | Separate electronic torque adjustment for each motor and operating times | Fixed slow-downs | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning
| Control unit power supply | 230 Vac – 50/60 Hz |
| Motor supply | 230 Vac |
| N. memorisable codes | 64 |
| Encoder | No |
| Virtual encoder | No |
| Inverter technology | No |
| STC System | No |
| ARC Only | No |
| Self-Calibration | No |
| Maintenance warning | Yes |
| Password | Yes |
