Description

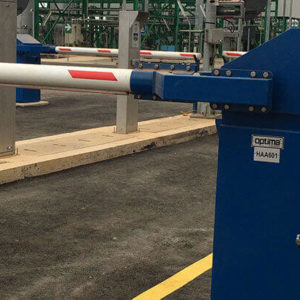

Optima Challenger-ART series electromechanical barriers are designed for high flow traffics. Compare to the standard parking barriers, Optima electromechanical barriers are suitable for harsh environments and intensive usage. With the help of strong electric motor, barrier can resist hottest environmental conditions even it is used continuously. Another strong advantage of Optima barriers is smooth operation by frequency controller which supplies slow start/slow stop operation. This type of operation increases the mechanism usage life significantly.
The drive unit is electromechanical, but in case of power failure barrier can be lowered or lifted manually with the help of release gear mechanism. With the help of controlled electronics, raise/lower function can be achieved by every kind of card readers, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc. Besides, safety accessories like photocells, inductive loop detectors, flashing lights or red/green lights can be integrated to the system.
Arm width | Up to 4 meter |
Enviromental durability | Galvanized steel plate , RAL7012 powder coated , furnaced |
Type of steel | DX51D+Z (Galvanised steel ) |
Power | 220 Volt, 1 Phase , 50-60 Hz |
Power failure | Release gear by Allen key |
Speed | Up to 4 meter arm widht : 6 second |
Push button box | Raise , lower function |
Extra I/O | Enough I/O’s to connect any card reader , extra override keyboard etc. later on |
Proximity sensor | Available to sense the position of the barrier |
Motor Power | 550 Watt |
Enviromental condition | -25 °C and +65 °C, %95 non-condensing humidity |
Dual vehicle safety loop detector (optional) | This detector is used for safety |
Traffic light (optional) | 200mm diameter Red/Green LED and 2 m height electrostatic powder coated steel post |
Extra button (optional) | Emergency stop function |
Working power failure (optional) | 1 kVa UPS outside the cabinet |
Flashing Light (optional) | Flashes while the arm is in motion |
Articulated Arm Barrier
Title | Description | Version | Size | Hits | Date added | Date modified | Download |
---|---|---|---|---|---|---|---|
BA.B300-ART_B600-ART_Challenger-ART_Electromechanical_Articulated_Arm_Barrier.EN | 1.47 MB | 101 | 06-11-2022 | 06-11-2022 | DownloadPreview |
