Description

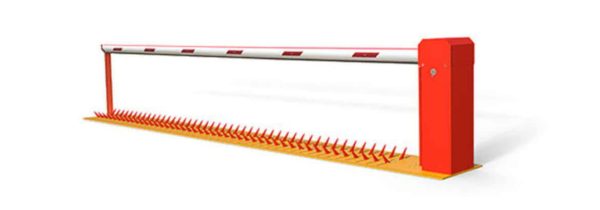

Optima BTK-300 / BTK-600 are the best option when Electromechanical Arm Barrier With Tyre Killer ( Flush Mount ) is demanded to be operated together. Instead of having two different products, Optima combined them under the same cabinet which enables to reduce the costs significantly. Other characteristics are the same as a standard electromechanical barrier.
Optima B series electromechanical barriers with tyre killers are designed for high-flow traffic. Compare to the standard parking barriers, Optima electromechanical barriers with tyre killers are suitable for harsh environments and intensive usage. With the help of a strong electric motor, the barrier can resist the hottest environmental conditions even if it is used continuously. Another strong advantage of Optima barriers is a smooth operation by frequency controller which supplies slow start/slow stop operation. This type of operation increases the mechanism usage life significantly.
The drive unit is electromechanical, but in the case of power, the failure barrier can be lowered or lifted manually with the help of the release gear mechanism. With the help of controlled electronics, raise/lower function can be achieved by every kind of card reader, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc. Besides, safety accessories like photocells, inductive loop detectors, flashing lights or red/green lights can be integrated into the system.
| Arm width | For BTK-300: 2-4 m, For BTK-600: 4-6 m |
| Environmental durability | Galvanized steel plate, RAL2004 powder coated, furnaced |
| Axle load | 50 tons |
| Type of steel | For the cabinet :DX51D+Z (Galvanised steel) For teeth and top plate: S235 |
| Traffic light | Red/green LED, 200 mm diameter, steel post 2 m height and electrostatic powder coated |
| Power | 220 V, 1 Phase, 50-60 Hz |
| Power failure | Release gear by Allen key, (or UPS optional) |
| Speed | For BTK-300: 3 seconds, For BTK-600: 6 seconds |
| Push button box | Raise, lower, stop (optional) |
| Extra I/O | Enough I/O’s to connect any card reader, extra override keyboard etc. later on |
| Proximity sensor | Available to sense the position of the barrier |
| Dual vehicle safety loop detector | This detector is used for safety (Optional) |
| Motor Power | 550 Watt |
| Environmental conditions | -25 °C and +65 °C, %95 non-condensing humidity |
