DIVA.3 Road barriers & car park saver
24 Vdc brushless barrier for continuous use with integrated control unit, encoder and battery charger | Switching power supply 115/230 Vac 50/60 Hz which reduces energy consumption and ensures a long lifespan of the actuator | Electric motor with brushless technology that guarantees highest performance, reliability, fluid movements and a very long lifespan of the operator. This represents the ideal solution in contexts requiring a particularly intensive use (Mean Cycles Between Failures = 5 million cycles) | Oil lubricated metal reductions and gear in bronze alloy allow minimising the wear process | The upper cover allows a fast access to the control unit, it is characterised by a lock with a personalised key for the opening and hinges that facilitate the installation and the wiring operations | RGB Led lights integrated in the cover and on the arm, with the possibility to work as a flashing light, a presence light with fixed colour, settable through the wiring. Through the accessory DIVA.TL, it is possible to adjust the colour of the lights according to the boom position (traffic light function) | Illumination and light diffusion systems on both the cover and the arm designed to guarantee the maximum visibility in every direction and work as footpath lights under the arm itself | Highest performance and speed (opening 0.9 s, slowdowns excluded) | Designed for the connection of the X.BE accessory in order to be integrated with KNX domotics installations and the programming through the app BeUP and the interface PRO.UP
Foundation plate not included
Technical Data
Power supply | 115 Vac / 230 Vac (50-60 Hz) |
Motor supply | 24 Vdc BRUSHLESS 3PH |
Max absorbed current | 1.5 A |
Power consumption in stand-by | ≤ 6 W |
Opening time | 0.9” (slowdowns excluded) |
Duty cycle | continuous use |
Protection level | IP44 (control unit IP54) |
Built-in control unit | |
Integrated receiver | |
Encoder | |
Operating temperature | -20°C /+50°C |
Lubrication | OIL |
Passage width | 3.0 m |
Weight | 49 kg |
N. motors per pallet | 9 |
CONTROL UNITS

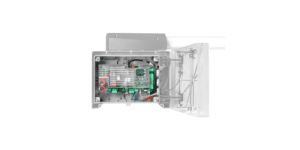

CP.DIVA
APPLICATION
1 brushless road barrier DIVA range
CONTROL UNIT POWER SUPPLY
115 or 230 Vac (selectable) 50/60Hz
MOTORS POWER SUPPLY
24 Vdc three-phase brushless
MAIN FUNCTIONS
Integrated LCD Display | Integrated 433.92 MHz 512-code radio receiver with ARC coding | Removable terminal blocks | Automatic, semi-automatic and deadman logic | Step by step, stop, photocell, open and close inputs | Outputs for configuration as open barrier indicator light, second radio channel, boom lights, courtesy light, verified photocell power supply, maintenance indicator, close contact when the barrier is open or closed |Autosetting of operation parameters | Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) | Separate electronic adjustments of opening and closing speeds | Anti-crushing safety through amperometric detection and encoder management | Electronic slowdowns in opening and closing | Preparation for the operation of opposed barriers with SIS synchronisation board (optional) Set up for connection to KNX systems via X.BE card (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Advantouch system to configure parameters and manage radio transmitters | Number of manoeuvres | Programming access password | Maintenance warning | Built-in battery charger compatible with DA.BT2 and DA.BT6 batteries
