Description

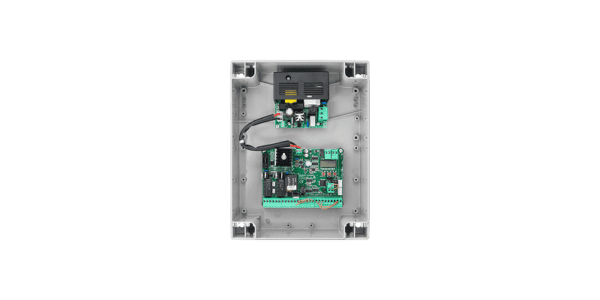

BRAINY24+
APPLICATION
1 or 2 actuators for swing gates, opposed sliding gates, and industrial folding doors with a maximum of 2 sections
CONTROL UNIT POWER SUPPLY
100÷250 Vac – 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code receiver with 3 encoding systems (Advanced Rolling Code, Rolling Code, Fixed Code) | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Separate limit switch inputs for each motor | Open, close, step by step, pedestrian and stop inputs | Separate photocell inputs in opening-closing and in closing phases | Input for N.C. or 8K2 sensitive edge | Output for electric lock 12 Vdc | Output for configuration as gate open indicator or photocell testing | Output for configuration as second radio channel or service light | Autosetting of operating parameters | Separate electronic torque adjustment for each motor | Anti-crushing safety through amperometric detection and encoder management | Separate adjustable slowdowns for each motor | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning | Built-in battery charger, compatible with batteries DA.BT2/DA.BT6
Control unit power supply | 100÷250 Vac – 50/60 Hz |
Motor supply | 24 Vdc |
N. memorisable codes | 64 |
Encoder | Yes |
Virtual encoder | No |
Inverter technology | No |
STC System | No |
ARC Only | No |
Self-Calibration | Yes |
Maintenance warning | Yes |
Password | Yes |
