Description

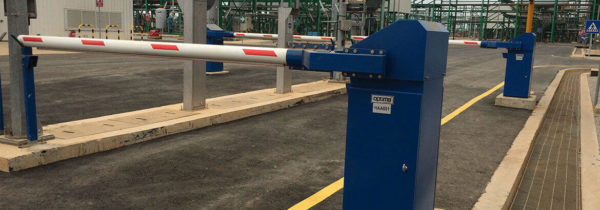

Optima HAB series Hydraulic Arm Barriers are designed for harsh and windy environments. With the help of strong mechanical and hydraulic design, Optima HAB series hydraulic barriers offer long term durability.
The drive unit is hydraulic, but in case of power failure barriers can be lowered or lifted manually with the help of manual hand pumps and valves. With the help of controlled electronics, raise/lower function can be achieved by every kind of card readers, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc. Besides, safety accessories like photocells, inductive loop detectors, flashing lights or red/green lights can be integrated to the system.
SYSTEM FEATURES IN HAB SERIES ARM BARRIER
| Arm width | 2000-8000 mm |
| Environmental durability | Galvanized steel plate, RAL2004 powder coated, furnaced |
| Type of steel | DX51D+Z |
| Traffic light | Red/green LED, 200 mm diameter, steel post 2 m height and electrostatic powder coated |
| Bearing | Pillow Block Bearings |
| Power | 380 V, 3 Phase, 50-60 Hz or single phase 220 V available |
| Power failure | Manual hand pump or UPS (optional) |
| Speed | For Arm width of 2-4 m : 4-6 secFor Arm width of 4-6 m : 6-8 secFor Arm width of 6-7 m : 8-12 sec| For Arm width of 7-8 m : 12-15 sec |
|
|
|
| Desktop keyboard | Raise, lower, emergency stop, key operated, ‘keyboard in use’ light indicator |
| Extra I/O | Enough I/O’s to connect any card reader, extra override keyboard etc. later on |
| Proximity sensor | Available to sense the position of the barrier |
| Dual vehicle safety loop detector |
|
| This detector is used for safety (Optional) |
| Motor Power | Min 550 Watt |
| Environmental conditions | -25 °C and +65 °C, %95 non-condensing humidity |
| Environmental conditions (optional) | -40 °C and +70 °C, %95 non-condensing humidity |
