Description

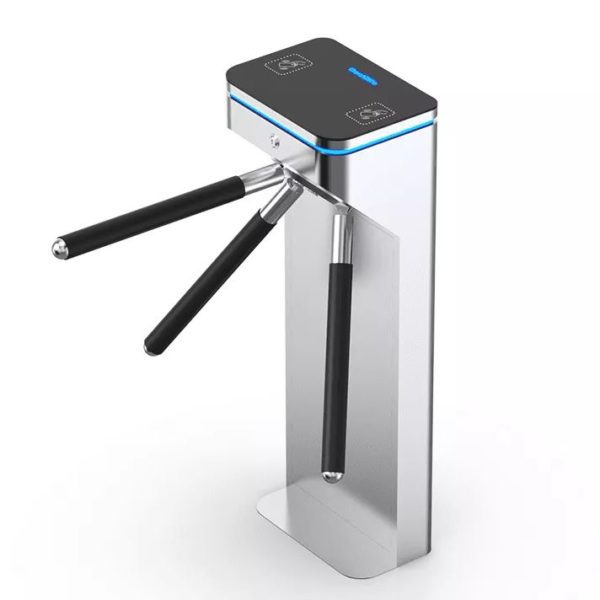

- Nebula DSN-50 tripod turnstile is the most cost-efficient in all type turnstiles.
- The most obvious feature is the slim and delicate design (360*260*980mm) to save space occupation.
- Exquisite and beauty is the most attractive feature in the first look.

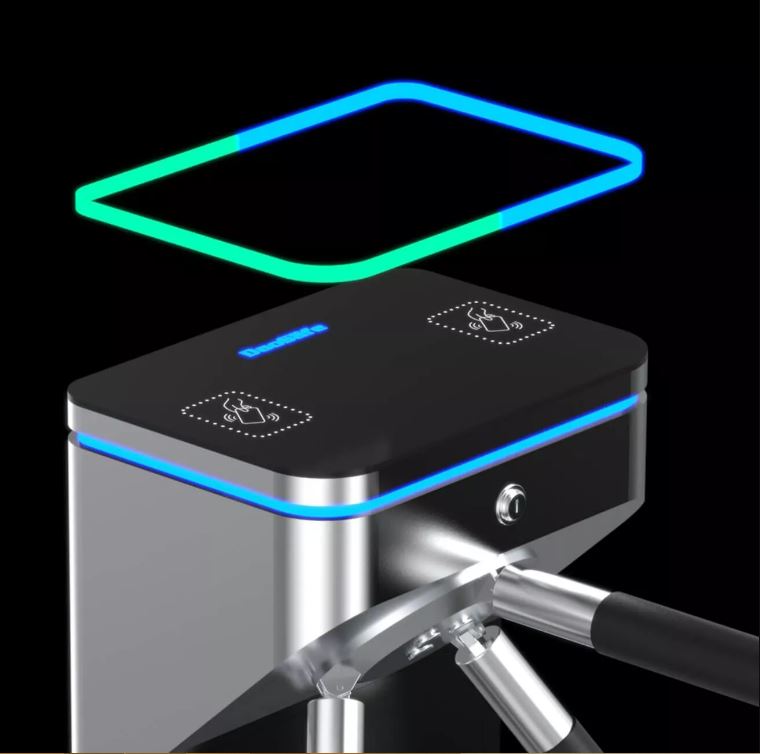

- At the top, it’s covered by a high black tempered glass, show up an attractive and impressive character.
- It is ideal for both indoor or outdoor with waterproof design.
- Superior production: Combine mold production to ensure the high quality guaranteed. Welding: adopt Robot for weld to improve the high technological level.
- The full stainless-steel body is surrounded with dazzling decorative LED light bar which bring out an aesthetic and distinctive sense.
Features
- Long-life performance, high operation dependability and fast response
- The whole system runs smoothly, low noise, no mechanical impact
- Single directional or bi-directional is selectable
- Automatic reset function: swing arms will lock automatically within 5s (can be setting) if passenger delay to entry
- When power is off, arms will drop down automatically, which is complying with fire safety requirements
- LED indicator (red means no entry; green means entry; blue means normal close)
- Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion
- Only one person can pass at one time, to prevent the illegal following
- Easy to install and maintain
- 3-year warranty support
Weld Robot & Mould Production
Superior production: combine mold production to ensure the high quality guaranteed. Welding: adopt robot for weld to improve the high technological level.

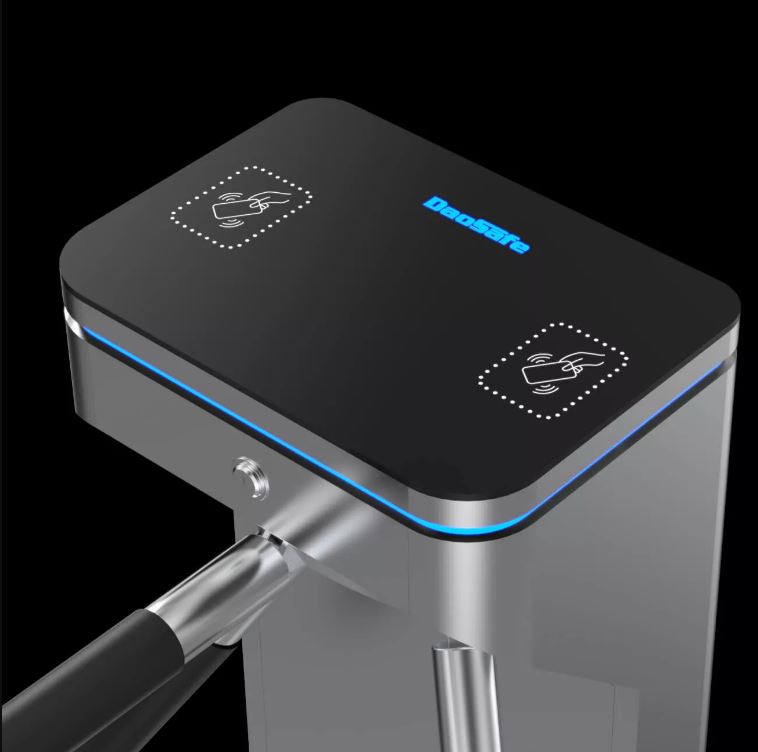

High End Tempered Glass
At the top, it’s covered by a high black tempered glass, show up an attractive and impressive character.

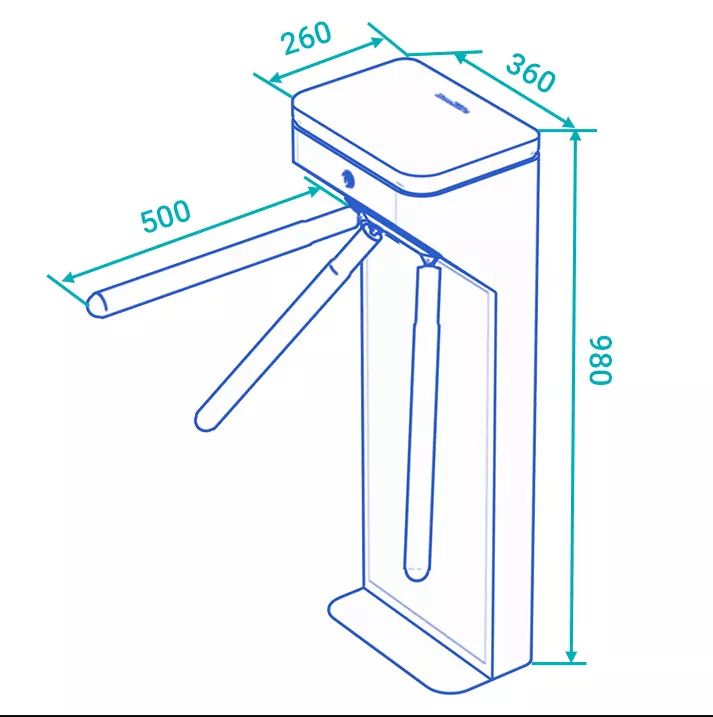

Product Details and Dimensions
All the details and dimensions can be customized according to your project site
LED Indicator
The full stainless-steel body is surrounded with dazzling decorative LED light bar which bring out an aesthetic and distinctive sense. The color of light bar represent state of gate, green color means people entry and blue color means normal close.
Product Parameters
Model No. DSN-50 Brand Daosafe Framework Material 304 brushed stainless steel+ High end black tempered film glass Swipe Card Panel Material Tempered glass Arm Material 304 Stainless Steel with rubber protector Dimension 360 *260 * 980mm Weight 35kg/pcs Passage Width 550mm (Arm length: 500mm) Passing Direction Single directional / Bi-directional MCBF 10 million Power Supply AC220V/110V, 50/60Hz Operation Voltage 24V DC Power Consumption 20W Operation Temperature -20 °C – 75 °C Operation Humidity 0 ~ 95% (No freeze) Working Environment Indoor / Outdoor Flow Rate 40 people per minute LED Indicator Unique blue LED strip (front+ top+side) Emergency Arms will drop down automatically Communication Dry contact, Relay signal, RS485 Top Panel Customized
The top panel is available in two solutions, QR Code and card reader. And the arm can be put on black rubber protector or no protector.Easy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
