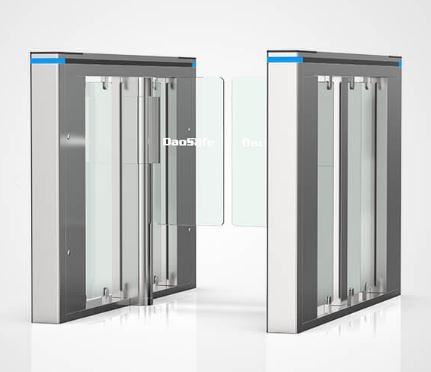

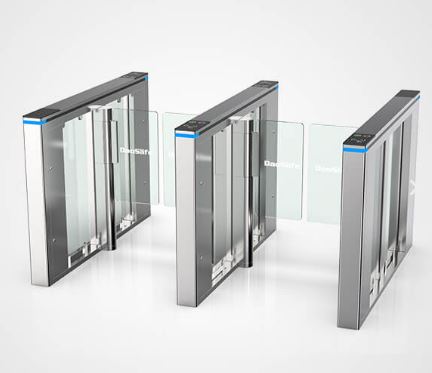

Speed Gate DS7300 “Daosafe”

Description

• • Speed gate DS7300 is designed in a super-fast, slim and artistic style to provide access control at place with elegant requirement, like business center, hotel and hall.
  • The body is made of brushed stainless steel and the arm is transparent Plexiglas/acrylic. ​
  • The housing is specially designed only to 120mm.
  • the LED shows the current working mode (open/close) on the top cover.
  • The system is with high open and close rate (0.2S) and 50 persons/minute throughput.
  • It’s with 6 pairs infrared sensors to ensures the security of passage at high throughput.
  • Features of Daosafe Speed Gate
    • Long-life performance, high operation dependability and fast response
    • The whole system runs smoothly, low noise, no mechanical impact
    • Single directional or Bi-directional is selectable
    • Automatic reset function: swing arms will lock automatically within 5s (can be setting) if passenger delay to entry
    • When power is off, swing arms will open automatically, which is complying with fire safety requirements
    • LED indicator (red ━ means no entry; green → means entry)
    • Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion
    • Anti-intrusion function, the turnstile is locked automatically until valid opening signal input
    • Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction
    • Anti-trailing function, the turnstile alarm if someone wants to burst in without permission
    • Glass arms will reset automatically if is off position after strong hit. The movement will not be broken or damaged for bump
    • It has the fastest open and close speed rate, 0.2 second. The open and close speed rate can be adjusted
    • Easy to install and maintain
    • 3-year warranty support It can integrate with different third-party access controller or (e.g.: RFID card reader, biometric reader device and counter).



  • Product Parameters

  Model No.	DS7300
  Brand	Daosafe
  Framework Material	304 Full Stainless Steel
  Arm Material	Plexiglas-transparency

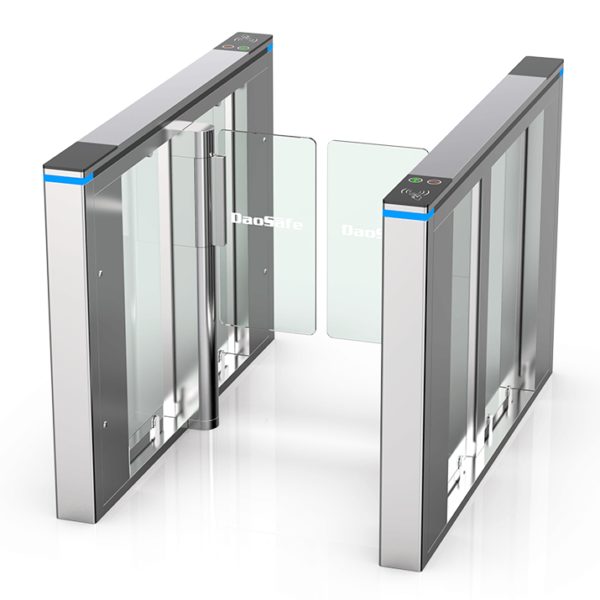

  Dimension	1500 * 120 * 1020mm
  Weight	80kg/pcs (single core), 100kg/pcs (double core)
  Passage Width	600mm (standard), 900mm (handicap)
  Passing Direction	Single directional / Bi-directional
  MCBF	15 million
  Power Supply	AC220V/110V, 50/60Hz
  Operation Voltage	24V DC
  Power Consumption	90-100W
  Operation Temperature	-20 °C – 75 °C
  Operation Humidity	0 ~ 95% (No freeze)
  Working Environment	Indoor / Outdoor（shelter）
  Flow Rate	45-55 people per minute
  LED Indicator	Two LED indicators on top: green → entry, red × no entry
  Infrared Sensor	6 pairs (standard)
  Emergency	Automatic arm open when power off
  Communication	Dry contact, Relay signal, RS485

  • We Provide Multiple Solutions

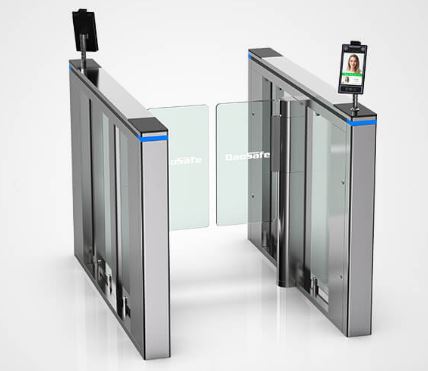

  • Can integrate a variety of access control equipment



  • DS7300

  DS7300
