Description

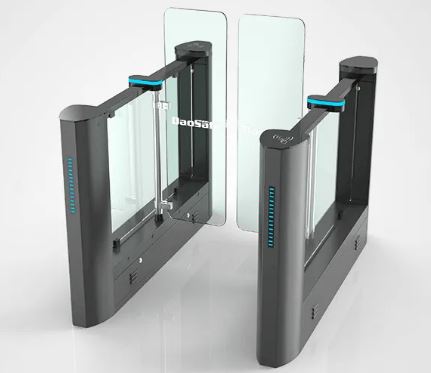

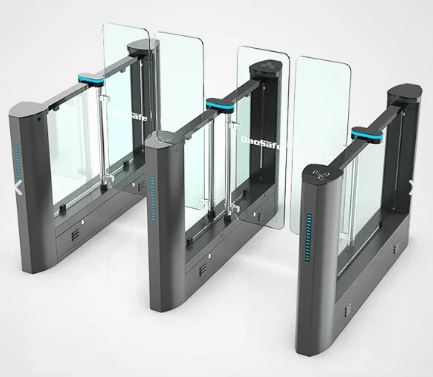

- DSN-80 nebula high glass speed gate outstanding features: fast open and close speed, exceeding slim housing, different height glass arms.

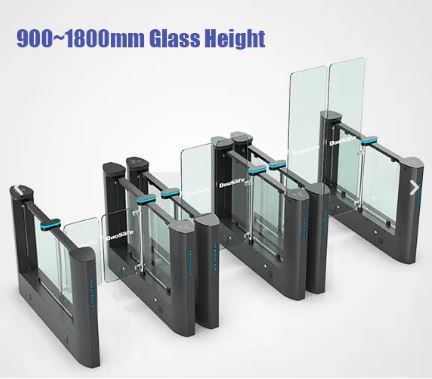

- The glass arm can be heightened to 1800mm for high security control to prevent unauthorized person from climbing.

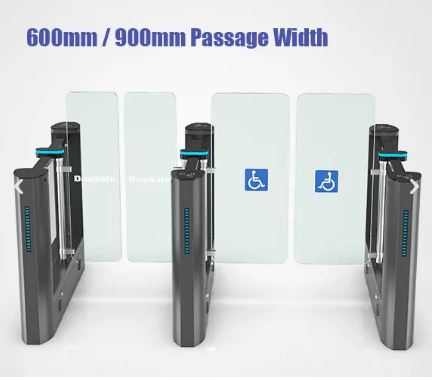

- The passing width can reach to 600mm for normal passage, and can support 900mm arm for wide passageway, wheelchair, and pedestrian with large luggage can also pass
- It is ideal for both indoor or outdoor with waterproof design.
- Application: suitable for any high-end sites, such as government building, chamber, bank, airport, stadium and so on.
Features of Daosafe Speed Gate
- Long-life performance, high operation dependability and fast response
- The whole system runs smoothly, low noise, no mechanical impact
- Single directional or Bi-directional is selectable
- Automatic reset function: swing arms will lock automatically within 5s (can be setting) if passenger delay to entry
- When power is off, swing arms will open automatically, which is complying with fire safety requirements
- LED indicator (red ─ means no entry; green → means entry)
- Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion
- Anti-intrusion function, the turnstile is locked automatically until valid opening signal input
- Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction
- Anti-trailing function, the turnstile alarm if someone wants to burst in without permission
- It has the fastest open and close speed rate, 0.5 second.
- Easy to install and maintain
- 3-year warranty support
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
| Model No. | DSN-80 |
|---|---|
| Brand | Daosafe |
| Framework Material | Steel+ stoving varnish |
| Swipe Card Panel Material | Tempered glass |
| Arm Material | Plexiglas-transparency (standard), tempered glass (optional) |
| Dimension | 1400 * 185 * 990mm |
| Weight | 85kg/pcs (single core), 105kg/pcs (double core) |
| Passage Width | 600-900mm (One passage) |
| Glass Height | 1200mm (standard), 900mm-1800mm (optional) |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 12 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 40W-60W |
| Operation Temperature | -15 °C – 70 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 50-55 people per minute |
| LED Indicator | Yes |
| Infrared Sensor | 6 pairs (standard) |
| Emergency | Automatic arm open when power off |
| Communication | Dry contact, Relay signal, RS485 |
