Description

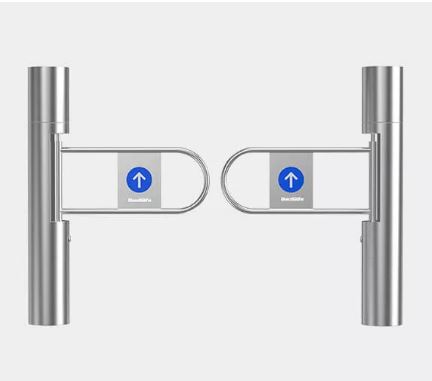

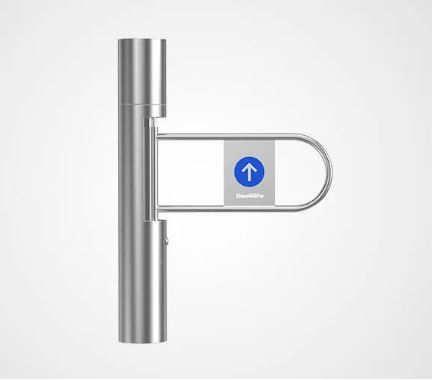

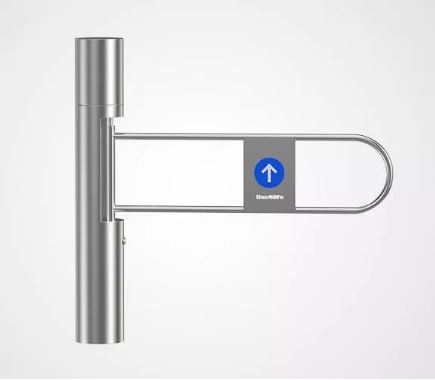

Swing Turnstile DS205A
- Swing turnstile DS205A is designed to control entering or exiting in indoor and outdoor restricted areas.
- It’s bi-directional setting.
- The whole body is made from brushed stainless steel; Arm material is plexiglas or stainless steel (based on customer’s order)
- The body is very slim and compact, so it’s not easy to install external device, like biometric device, card collector, coin insert etc.., usually a manual type.
- The passage width can make to 900mm, which supports wheelchair, pedestrian with large luggage, bicycle and pram.
- This model is very common to be used in shops and supermarkets.
Features of Swing Turnstile
- The whole system runs smoothly, long-life performance, high operation dependability and fast response
- Alarm function, in case of illegal intrusion and reverse intrusion (optional)
- Infrared sensor to prevent pinch pedestrians (optional)
- Anti-breakthrough function. The gate is locked automatically until opening signal received
- Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card (optional)
- Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
- When power is off, optical turnstile will open automatically, which is complying with fire safety requirements
- Easy to install and maintain
- 3-year warranty support
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
Product Parameters
Model No. DS205A Brand Daosafe Framework Material 304 Full Stainless Steel Arm Material Plexiglass / Stainless Steel Dimension 168 * 1050mm Weight 25kg/pcs Passage Width 600-900mm (One passage) Passing Direction Single directional / Bi-directional MCBF 3 million Power Supply AC220V/110V, 50/60Hz Operation Voltage 24V DC Power Consumption 40W Operation Temperature -15 °C – 60 °C Operation Humidity 0 ~ 95% (No freeze) Working Environment Indoor / Outdoor Flow Rate 30 people per minute LED Indicator No Infrared Sensor Optional Emergency Automatic arm open when power off Communication Dry contact, Relay signal, RS485 We Provide Multiple Solutions
Can integrate a variety of access control equipmentEasy Installing, NO Need Any Special Electrician Skills
Fix on ground, connect to power supply, it will work
