Description

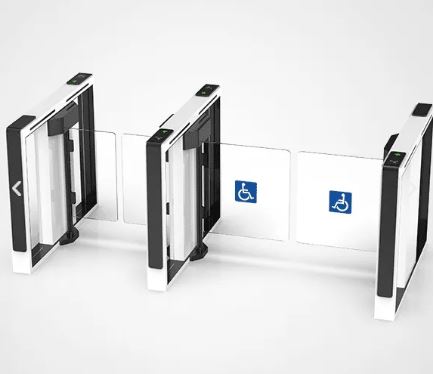

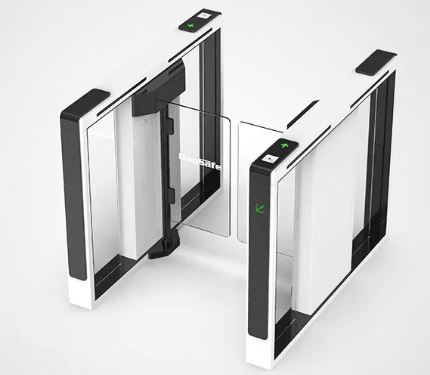

- DS-Q20 Quantum optical swing turnstile is to control pedestrian entry or exit in restricted areas, usually used in high pedestrian traffic flow in both directions. With 1100mm wide passageway, supporting wheelchair, large package and emergency purpose
- Design with classic black, white color appearance, elegant and timeless pairing, perfect for using at high end applications.
- Green and red LED indicator display passing status.
- Fire safety requirements, arms open automatically.
- Support integrated with any type of access control systems.
- Logo, appearance color, dimensions can be customized based on installation environment.
Features of Daosafe Optical Swing Turnstile
- Long-life performance, high operation dependability and fast response
- The whole system runs smoothly, low noise, no mechanical impact
- Single directional or Bi-directional is selectable
- Automatic reset function: swing arms will lock automatically within 5s (can be setting) if passenger delay to entry
- When power is off, swing arms will open automatically, which is complying with fire safety requirements
- LED indicator (red ━ means no entry; green → means entry)
- Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion
- Anti-intrusion function, the turnstile is locked automatically until valid opening signal input
- Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction
- Anti-trailing function, the turnstile alarm if someone wants to burst in without permission
- Glass arms will reset automatically if is off position after strong hit. The movement will not be broken or damaged for bump
- It has the fastest open and close speed rate, 0.2 second. The open and close speed rate can be adjusted
- Easy to install and maintain
- 3-year warranty support
Product Details and Dimensions
All the details and dimensions can be customized according to your project site
Integrate Any Access Controllers
Model DS-Q20 speed gate can be inetgrated with any 3rd access control systems, like card, QR/bar code, biometric, button, remote control, palm vein and so on.
Card Solution
QR/Bar Code Solution
Biometric Solution
Product Parameters
| Model No. | DS-Q20 |
|---|---|
| Brand | Daosafe |
| Framework Material | Steel + White and black stoving varnish |
| Swipe Card Panel Material | Tempered glass |
| Arm Material | Plexiglas-transparency |
| Dimension | 1400 *120 * 978mm |
| Weight | 65kg/pcs |
| Passage Width | 600~1100mm |
| Passing Direction | Single directional / Bi-directional |
| MCBF | 10 million |
| Power Supply | AC220V/110V, 50/60Hz |
| Operation Voltage | 24V DC |
| Power Consumption | 20W |
| Operation Temperature | -20 °C – 75 °C |
| Operation Humidity | 0 ~ 95% (No freeze) |
| Working Environment | Indoor / Outdoor |
| Flow Rate | 40 people per minute |
| Infrared Sensor | 4 Pairs (standard) |
| LED Indicator | Yes |
| Emergency | Arms will open automatically |
| Communication | Dry contact, Relay signal, RS485 |
DS-Q20
| Title | Description | Version | Size | Hits | Date added | Date modified | Download |
|---|---|---|---|---|---|---|---|
| Daosafe-DS-Q20-Quantum-Optical-Swing-Turnstile-Datasheet-1 | 1.12 MB | 105 | 09-09-2023 | 09-09-2023 | DownloadPreview |
