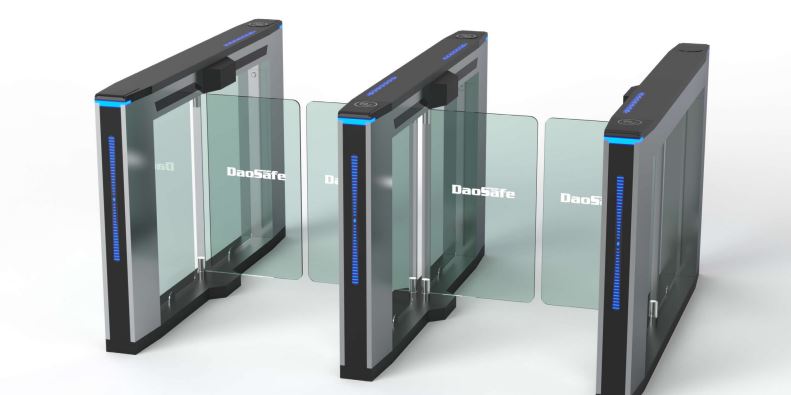

DSN-20 Nebula Optical Swing Turnstile “Daosafe”

Description

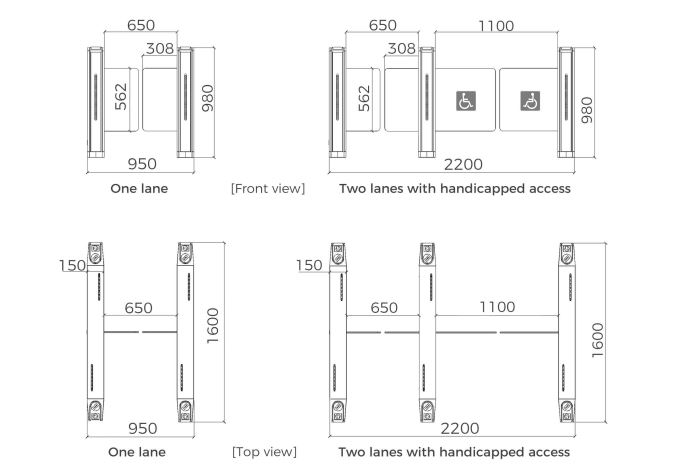

 Nebula optical swing turnstile with the most advantage is that the passage width can reach to 650mm-1100mm, which is
suitable for handicapped person with wheelchair or pedestrians with luggage.
 Nebula optical swing turnstile with unique design, stylish of modern and urbanization cabinet, typical swipe card panel,
attractive blue LED strip, solid body crate, brushed stainless steel and high-end black painting process.
 Superior production: Integrated mold production to ensure the high quality guaranteed.
 Fined welding: adopt Robot for weld to improve the high technological level.
 It is ideal for both indoor and outdoor settings.
 It is to control pedestrian entry or exit in restricted areas, usually used in high pedestrian traffic flow in both directions.
 It has standard relay signal, which can be integrated with any kind of third-party access control system (e.g.: RFID,
Fingerprint and Biometric reader device).
 In case of emergency, the arms will open automatically to allow free passage when power off.
 It is suitable for areas with general pedestrian traffic (e.g.: Hotel, Gym, Building, Shopping mall, Reception Area and so on)

Long-life performance, high operation dependability and fast
response.
 Single directional or Bi-directional is selectable.
 Automatic reset function: swing arms will lock automatically
within 5s (can be setting) if passenger delay to entry.
 When power is off, swing arms will open automatically, which is
complying with fire safety requirements.
 LED indicator (red means no entry; green means entry; blue
means normal close).
 Infrared sensor alarm function, in case of illegal intrusion and
reverse intrusion.
 Anti-intrusion function, the speed gate is locked automatically
until valid opening signal input.
 Anti-reverse function, the turnstile alarms if someone wants to
entry in the reverse direction.
 Anti-trailing function, the speed gate alarms if someone wants
to burst in without permission.
 Anti-collision and anti-kick function, it designed with consolidated and more durable mechanism, will not break even someone
collide it.
 Mechanism self-protection: the arm will reset automatically if is off position. It’s movement will not be broken or damaged even
after hit.
 It has the fastest open and close speed rate and can be adjusted.
 Easy to install and maintain.
 3-year warranty support.

REMARK:

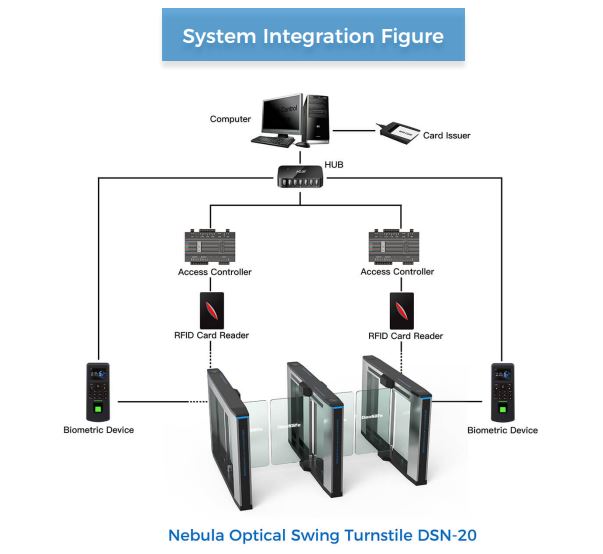

 The turnstile circuit board support to work with any relay signal, and support to integrated with any 3rd
party access control system: RFID, BIOMETRIC, QR/BARCODE and so on.
 Multiple access controller board can be connected by TCP/IP through net cable, control by central
computer.
 The turnstile circuit board is also with RS232 output, it can connect with mini PC. Turnstile will open once
received simple code by computer, which is suitable for the complicated like ticketing system solution.

The advantage of swing turnstile is that the passage width can reach to 650mm-1100mm, which is suitable for handicapped
person or pedestrians with luggage. The turnstile is usually used in high-grade occasion.
