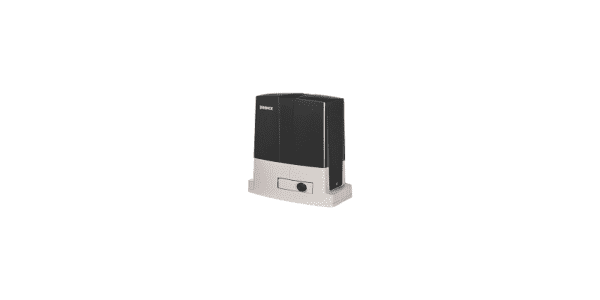

BULL624ESA.S
24 Vdc | intensive use
24 Vdc motor for intensive use, with built-in magnetic limit switches, integrated control unit and encoder | Energy saving ESA SYSTEM | The encoder device ensures maximum safety and precision in the gate moving phases | The STC system device enables the torque management in relation to the position of the gate, which guarantees maximum safety | Amperometric sensor obstacle detection system to prevent crushing | Battery back up system ready | Metal release lever
325x100x5 mm, installation template included, motor spacing 300×75 mm, 4 holes Ø 9 mm
Technical Data
Power supply | 230 Vac (50-60Hz) |
Motor supply | 24 Vdc |
Max absorbed current | 0.5 A |
Power consumption in stand-by | ≤ 1.5 W |
Maximum thrust | 857 N |
Opening speed | 5,8 ÷ 9,75 m/min |
Duty cycle | intensive use |
Protection level | IP44 |
Built-in control unit | |
Integrated receiver | |
Encoder | |
Virtual encoder | |
Magnetic limit switches | |
Pinion for rack | M4 Z14 |
Operating temperature | -20°C /+50°C |
Lubrication | GREASE |
Maximum gate weight | 600 kg |
Weight | 11.7 kg |
N. motors per pallet | 40 |
Kit weight | — |
N. kits per pallet | — |
Control Unit

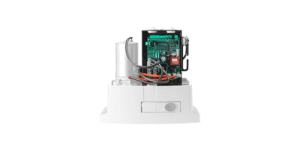

![CP.B24ESA](https://sitsolution.com/wp-content/uploads/2023/08/38a16364e7fb0ee5e6eede7a2d68eb3c-300x150.png)
CP.B24ESA
APPLICATION
1 actuator for sliding gates, series BULL424ESA and BULL624ESA
CONTROL UNIT POWER SUPPLY
230 Vac – 50/60 Hz
MOTORS POWER SUPPLY
24 Vdc
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 64-code radio receiver with ARC coding | Integrated ESA SYSTEM for energy savings | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Separate photocell inputs in opening-closing and photocell active in closing phases | Pedestrian, step by step and stop inputs | Input for N.C or 8K2 sensitive edge | Two outputs for configuration as gate open indicator, service light, second radio channel or area light | Photocell testing | Autosetting of operating parameters | Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) | Anti-crushing safety thanks to amperometric detection and encoder management | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning

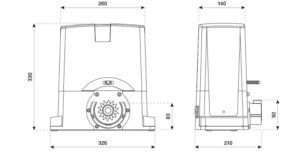

Technical Drawing
![BULL624ESA.S Technical Drawing](https://sitsolution.com/wp-content/uploads/2023/08/Technical-Drawing-2-300x158.jpg)
