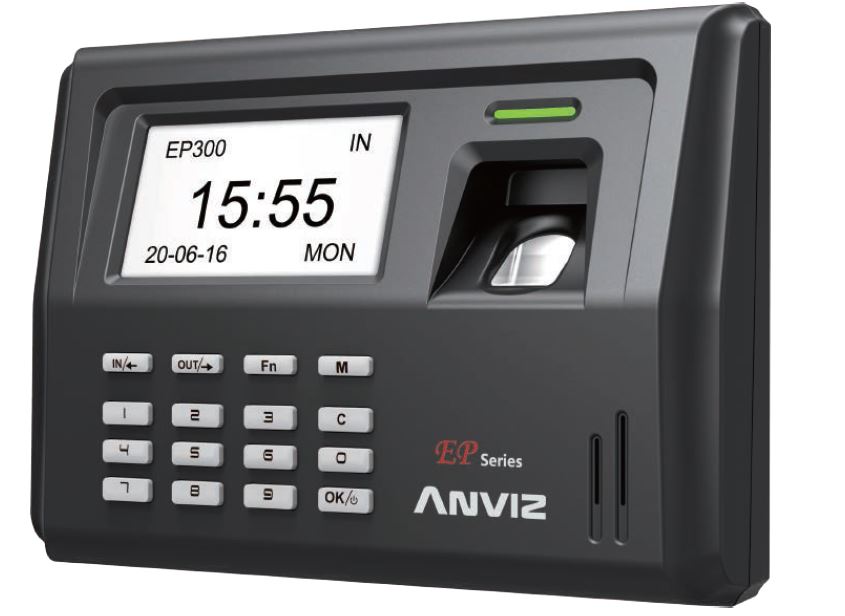

EP300 Fingerprint Time Attendance “Anviz”

Description

With Anviz’ s industry-leading fingerprint algorithm BioNANO & waterproof, dustproof and scratchproof fingerprint sensor, EP300 offers a perfect
time attendance solution. Special fingerprint positioning design makes it extremely friendly for both system administrators and everyday users.With
a built-in, rechargeable battery, EP300 is ideal for portable or backup use or in the event there is no AC power available. Whenever you need to
get the employee in and out records, everything is easy through USB cable (no driver needed), USB pen drive or TCP/IP network. Furthermore, the
casing of EP300 has been made with recycled carbon materials and has no surface painting treatment. Anviz’ s commitment to being a
responsible environmental citizen includes working to ensure our products are environmentally safe.

BioNANO – The core algorithm

BioNano is applied in all Anviz biometric-based products used for identification.

• Independent research and development
• Suitable for both wet and dry fingers
• Automatically heals the broken lines in fingerprint images
• Extraction of features in worn fingerprints
  Fingerprint template auto update

  Features

• Unique Fingerprint Positioning Design
• 2,000 Fingerprints, 50,000 Records
• Mini USB Slave & USB Flash Drive Host, TCP/IP
• Standard Rechargeable 1100mAH Battery
• Power Over USB/DC 5V
• 8 Customizable T&A States, 6-digit Work Code
• FP, ID+FP, ID+PW, FP+PW

  Technical Specifications

  ltem Description	Description
  Processor	32-bit High Speed CPU
  Algorithm	BioNANO
  Sensor	AFOS
  Scan Area	22m*18mm
  Resolution	500 DPI
  LCD	128*64 White LCD
  Fingerprint Capacity	2,000
  Log Capacity	50,000
  Identification Mode	FP, ID+FP, ID+PW, FP+PW
  Identification Time	<0.5 Sec
  FRR	0.001%
  FAR	0.00001%
  Communication Interface	TCP/IP, Mini USB, USB Memory
  Fingerprint Image Display	Yes
  Self-defined Status	8
  Work code	Yes
  Dimensions(WxHxD)	185 x 130 x 35mm(7.28×5.12×1.38″)
  Temperature	-30􀂥~60􀂥
  Operating Voltage	DC 5V
  Battery	Standard 1100mAH(+6 Hours)
  Certificates	CE, FCC, RoHS
  Soft	Anviz Crosschex Standard

  • EP300

  EP300

  Title	Description	Version	Size	Hits	Date added	Date modified	Download
  Anviz_EP300_QuickGuide_EN_07.05.2018			1.08 MB	172	06-03-2022	06-03-2022	DownloadPreview
  Anviz_EP300_Catalogue_EN_07.05.2018_compressed			144.48 KB	162	06-03-2022	06-03-2022	DownloadPreview
  566344_EP300-ID+CE-RF-Certificate			526.40 KB	146	06-03-2022	06-03-2022	DownloadPreview
  469089_EP300-BIS-Certificate			451.48 KB	159	06-03-2022	06-03-2022	DownloadPreview

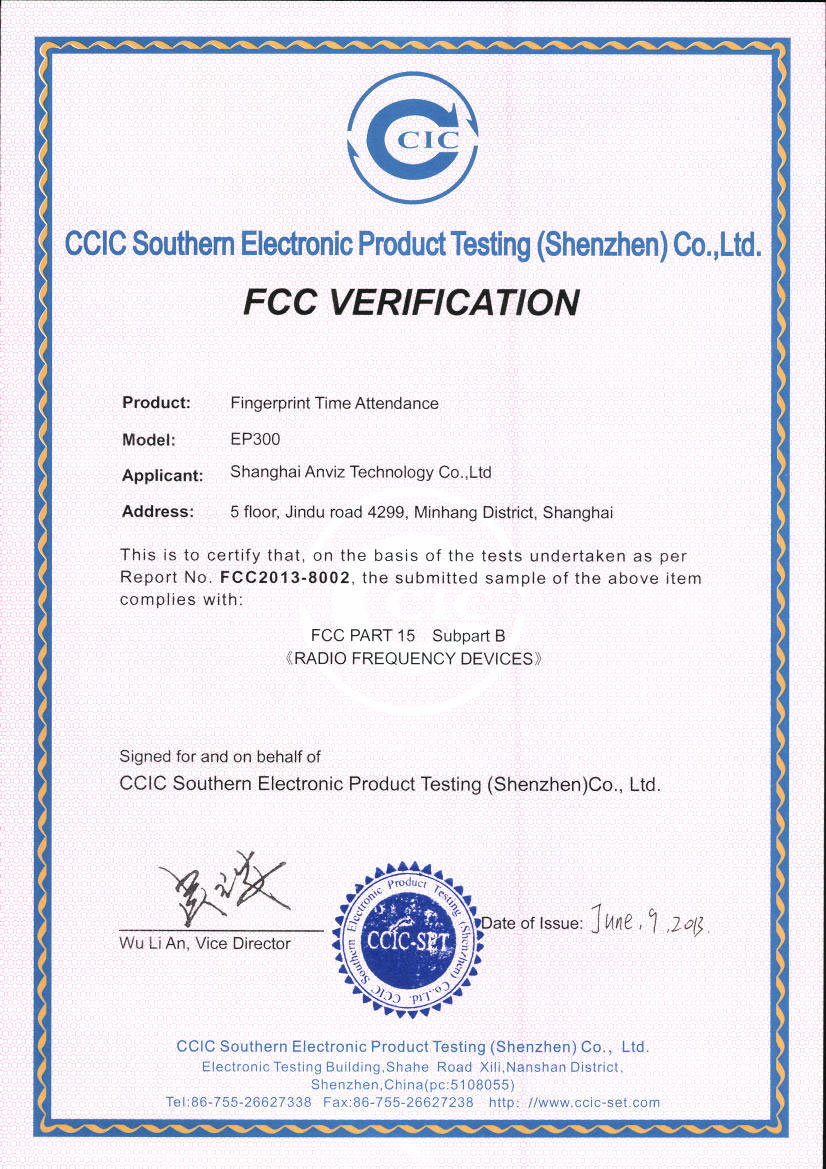

  295724_EP300-FCC-8002			270.94 KB	191	06-03-2022	06-03-2022	DownloadPreview

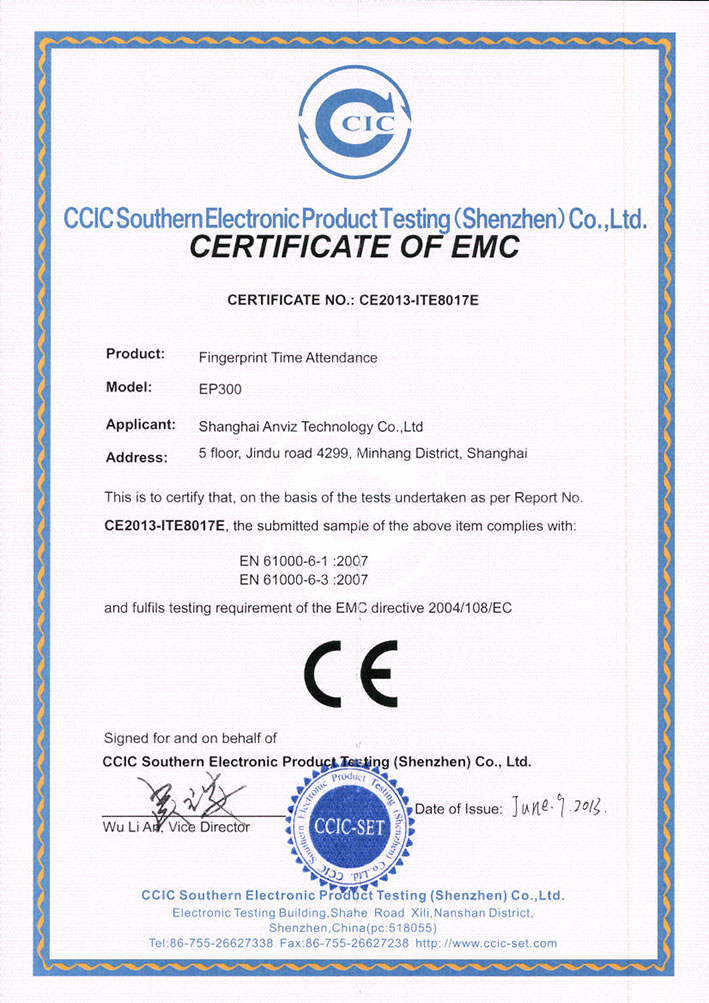

  295722_EP300-CE-ITE8017E (1)			176.21 KB	184	06-03-2022	06-03-2022	DownloadPreview
  295722_EP300-CE-ITE8017E			176.21 KB	191	06-03-2022	06-03-2022	DownloadPreview
  231583_Anviz_M3_EP300_User_Manual_V1.41_EN			5.36 MB	158	06-03-2022	06-03-2022	DownloadPreview
