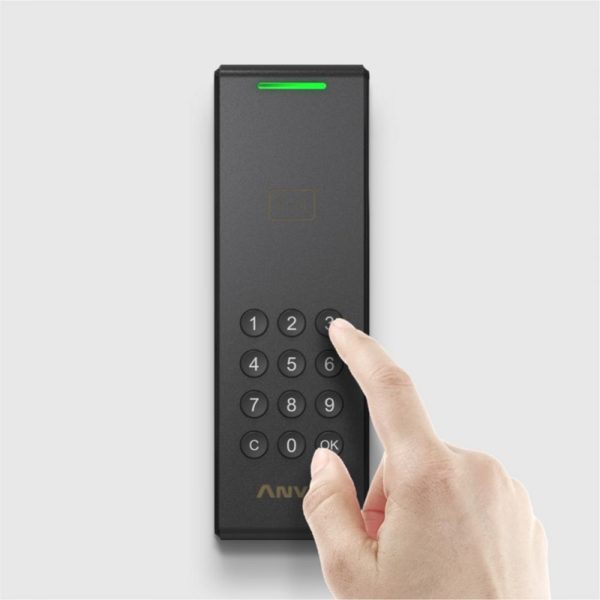

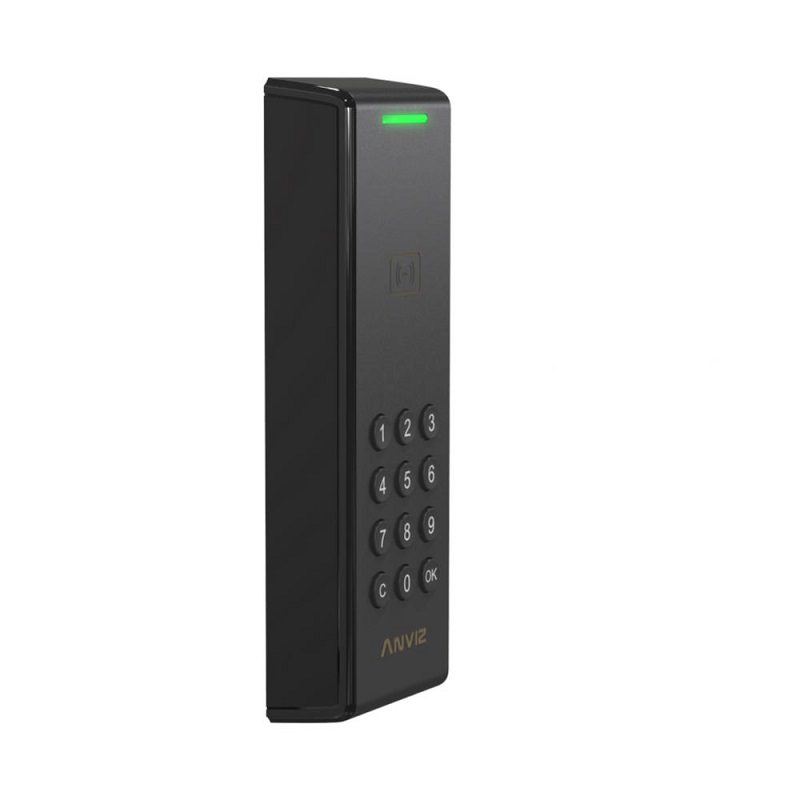

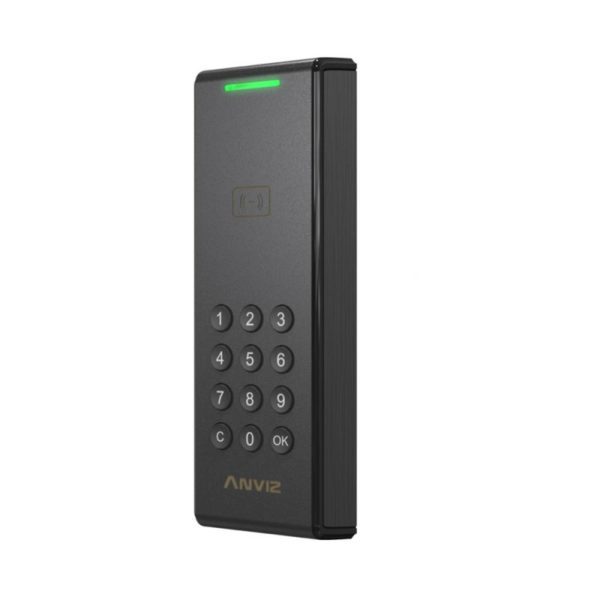

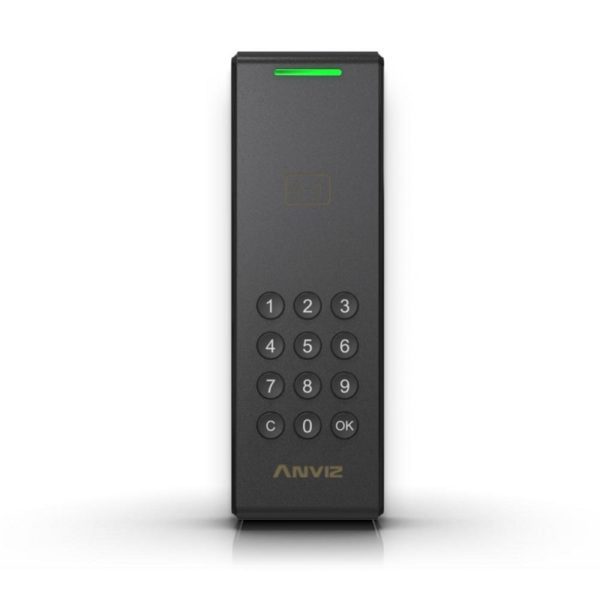

C2 KA Outdoor RFID Access Control Terminal “Anviz”

Description

Anviz C2 KA is a traditional RIFD access control device. With the creation of C2 KA, Anviz has now one more comprehensive application. Based on high-speed ARM CPU and Linux system platform. C2 KA gives the ability to deliver a fast matching speed and rapid responses while handling large amounts of data. The C2 KA features RS485, Bluetooth, WiFi and IP-based system topology and PoE offers PoE extra flexibility in designing your security system, while reducing cost on installation and maintenance. Featuring IP65 rated protection, the whole C2 KA body has been comprehensively sealed against invasive dust and liquid, ensuring that C2KA will operate with unmatched reliability in all types of conditions and installations.

Features

• Compact form design for easy installation
• IP65 Waterproof Design
• IP-based PoE, reducing cost on installation and maintenance.

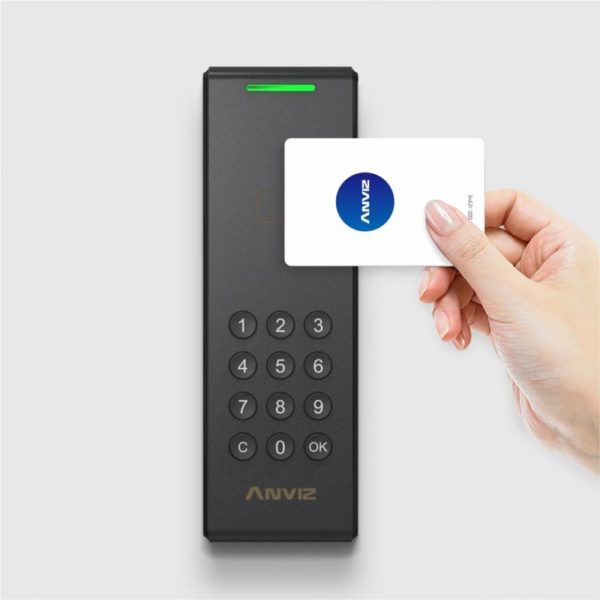

• Dual frequency RFID card identification
• Communications Flexibility (TCP/IP, WiFi, Bluetooth,RS485) appropriate for multiple network deployment
• Identification mode: Card, Password and Card+Password
• Comprehensive access interfaces such as Relay, Exit Button, Wiegand and Door Sensor
• Let your mobile phone be the key, combining with CrossChex Mobile App by Bluetooth


  Parameter

  Capacity
  Card Capacity	10,000
  Log Capacity	100,000
  Interface
  Comm.	TCP/IP，WiFi，Bluetooth，RS485
  Relay	1 Relay Output
  I/O	Wiegand Out&In, Door Sensor, Exit Button
  Feature
  Identification Mode	Card, Password
  Identification Time	<0.5s
  Webserver	Support
  Hardware
  CPU	Industrial High Speed CPU
  Tamper Alarm	Support
  RFID Support	Dual Frequency for EM and Mifare
  PIN	Supported (Keypad 3X4), PIN Code upto 10 digits
  PoE	Standard IEEE802.3af
  Size (W * H * D)	50 x 159 x 20mm (1.97 x 6.26 x 0.98″)
  Operation Temperature	-10°C~60°C (14°F~140°F)
  Operating Voltage	DC 12V & PoE
